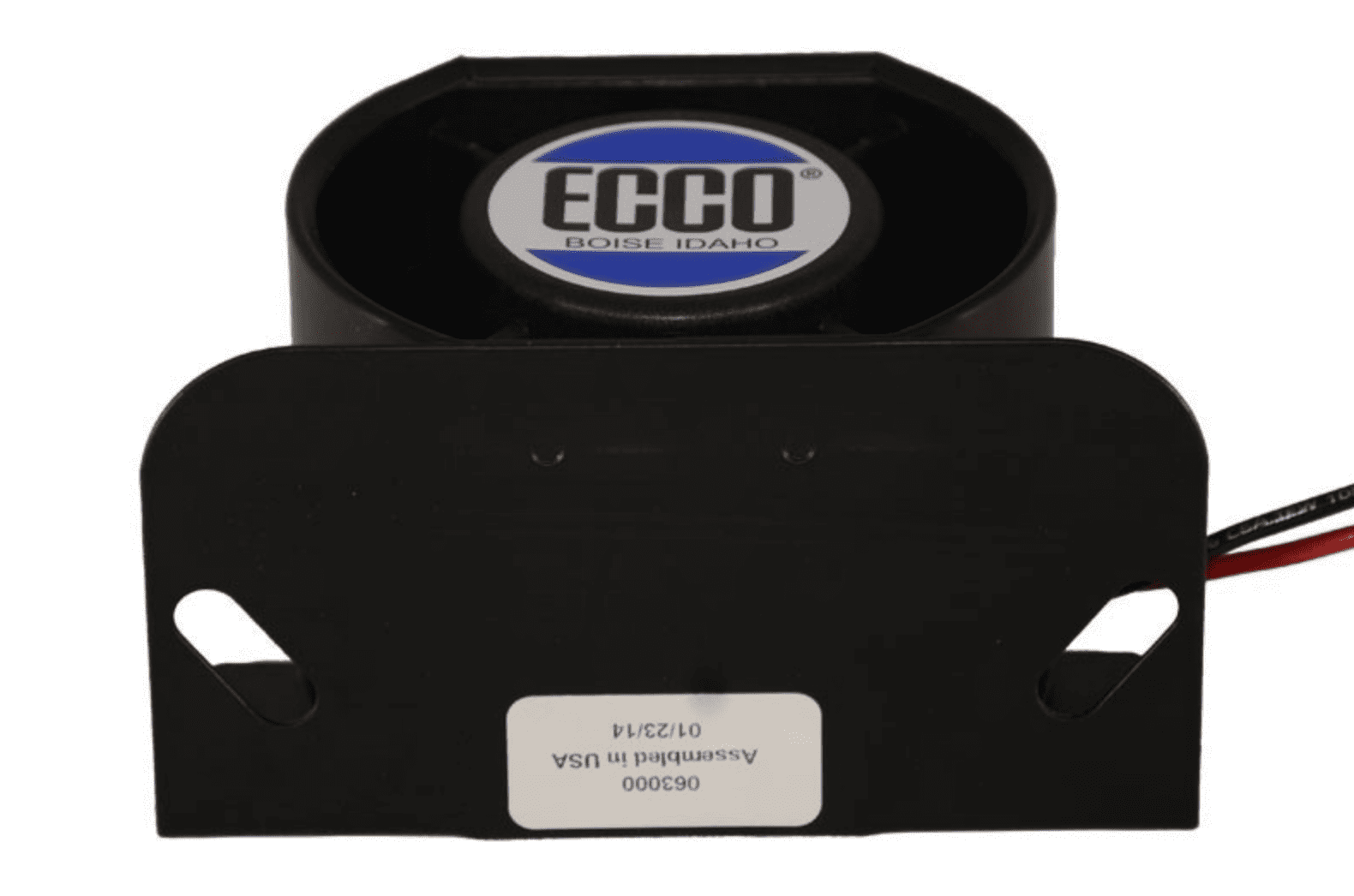

Alarm 12-36VDC JLG 0140032

39.72 Excl. VAT

JLG 0140032 fits JLG 3394RT, 4394RT, 450AJ, 510AJ, 600AJ, 800AJ, 1250AJP, 460SJ, 660SJ, 860SJ, 1200SJP, 1350SJP
Type of buzzer back-up alarm
Voltage (V) 12-36
Volume dB 107
Tone slow pulse
Number of connections 2
Type of connections wires
Type of sound beep
Broadband sound NO
Volume adjustement not adjustable
Tone frequency (Hz) 1560
Shape square/rectangular
Type of mounting multiple holes
Total length buzzer L1 (mm) 127
Total width buzzer W1 (mm) 76
Total height buzzer H1 (mm) 70
Total number of holes 8
Number of closed grooves 8
Length of the grooves L2 (mm) 23.4
Maximum width of the grooves W2 (mm) 8.4
Center distance: horizontal – length C1 (mm) 105.4
Center distance: horizontal – width C2 (mm) 22
Center distance: vertical – length C3 (mm) 105.4
Center distance: vertical – height C4 (mm) 42
Nut present NO
Length of the wires (mm) 275
Material of the housing plastic
Light present NO
Sticker present YES
Support present NO
Maximum current (A) 1.27
Power (W) 17.78
AC/DC DC
Minimum voltage (V) 12
Maximum voltage (V) 36
CE-approved YES
UL-recognized YES
UL-approved NO
SAE-approved YES
Restriction of hazardous substances NO
E-approved NO
Length (m) 0.07
Width (m) 0.13
Height (m) 0.08
Weight (kg) 0.60
