| Weight | 0,06 kg |
|---|---|
| Manufacturer / Brand |

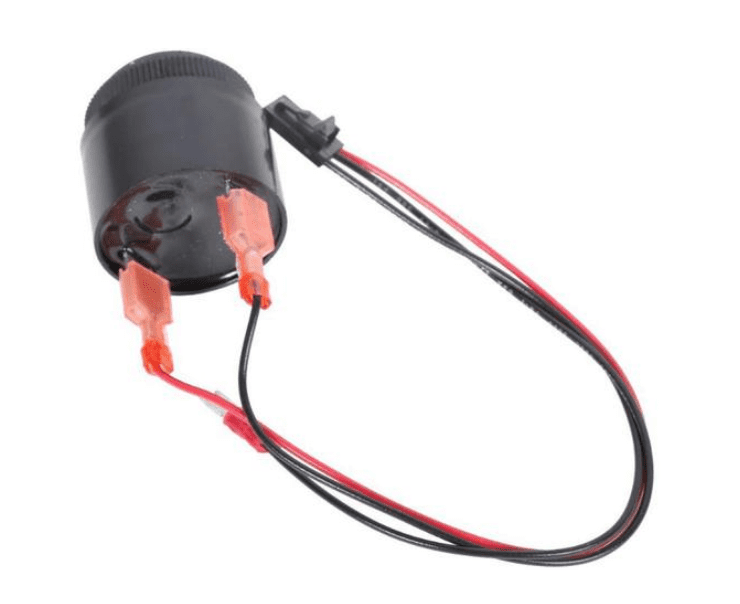

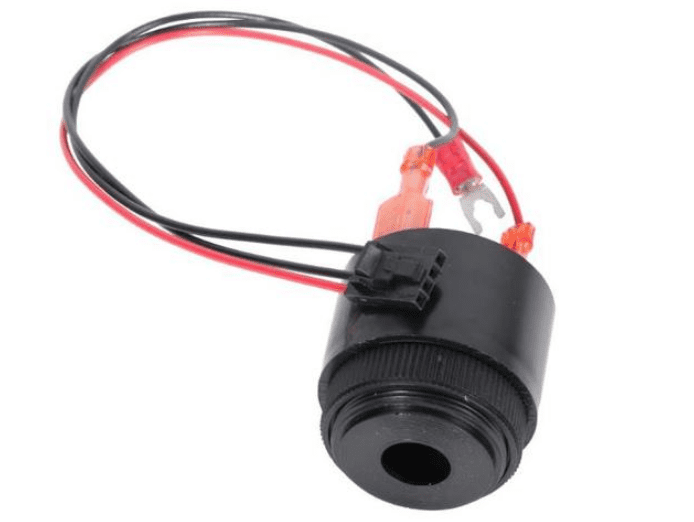

Alarm 6-28VDC Genie 62164
106,45 € Excl. VAT
Genie 62164 fits Genie GS2668RT, GS3268RT, GS4390RT, GS5390RT
| Type of buzzer | buzzer |
|---|---|
| Voltage (V) | 6-30 |
| Nominal voltage (V) | 12 |
| Volume dB | 90 |
| Tone | continuous |
| Number of connections | 2 |
| Type of connections | wires with connector-wires with pin |
| Type of sound | beep |
| Broadband sound | NO |
| Volume adjustement | not adjustable |
| Tone frequency (Hz) | 2900 |
| Shape | round |
| Type of mounting | panel mount |
| Total width buzzer W1 (mm) | 61.5 |
| Maximum diameter buzzer D1 (mm) | 36.3 |
| Built-in diameter D2 (mm) | 29 |
| Nut present | YES |
| Length of the wires (mm) | 240 |
| Material of the housing | plastic |
| Light present | NO |
| Sticker present | NO |
| Support present | NO |
| Maximum current (A) | 0.02 |
| AC/DC | DC |
| Minimum voltage (V) | 6 |
| Maximum voltage (V) | 30 |
| CE-approved | NO |
| UL-recognized | NO |
| UL-approved | NO |
| SAE-approved | NO |
| Restriction of hazardous substances | NO |
| E-approved | NO |
| Minimum operating temperature (°C) | -20 |
| Maximum operating temperature (°C) | 70 |
| Length (m) | 0.03 |
|---|---|
| Width (m) | 0.03 |
| Height (m) | 0.06 |
| Weight (kg) | 0.042 |
