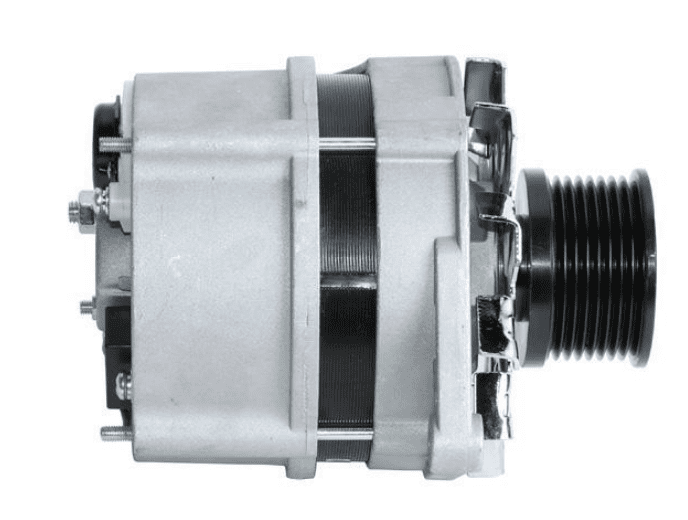

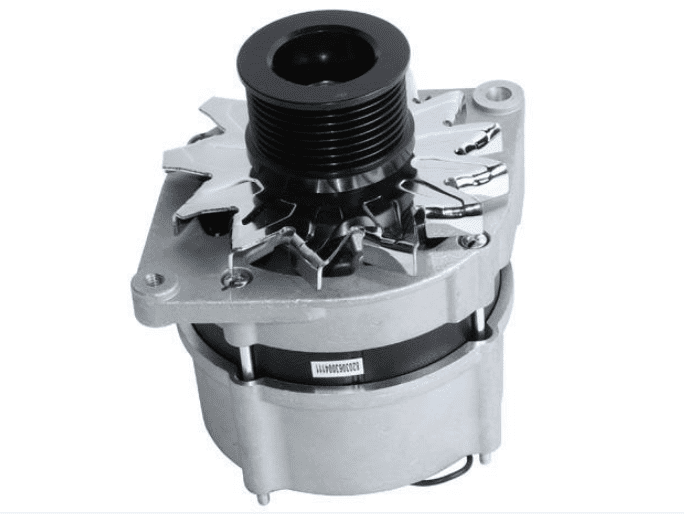

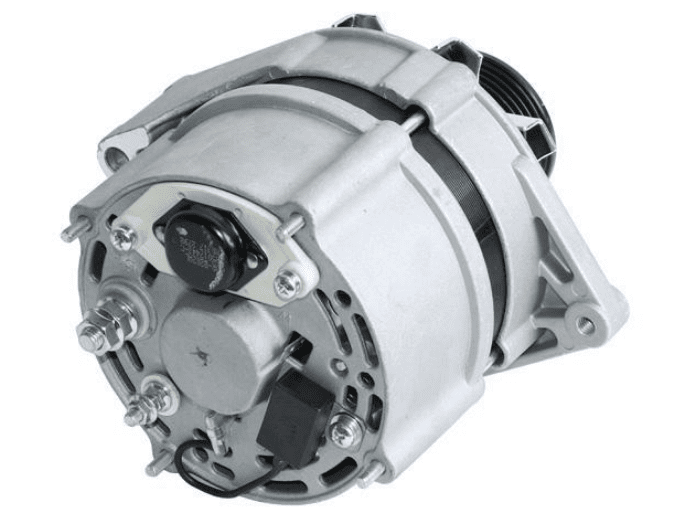

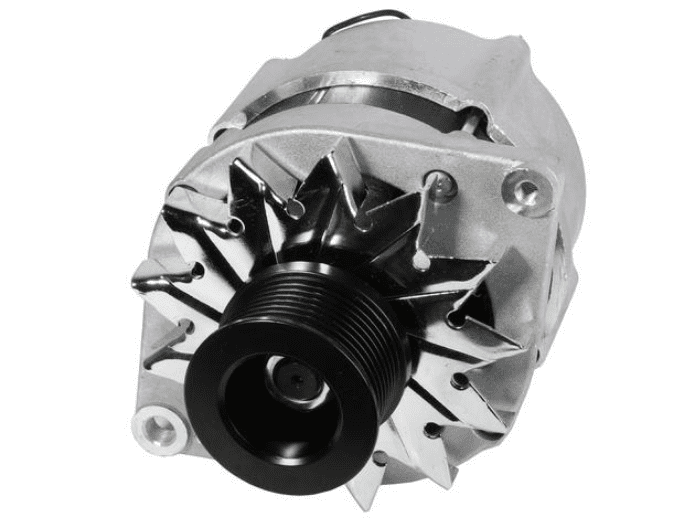

Alternator JLG 7026922 | Machinery parts online

663.66 Excl. VAT

Alternator JLG 7026922 fits JLG G10-55A G12-55A

Type of alternator 2-bolt fixing
Voltage U (V) 12
Current I (A) 95
Bracket width L1 (mm) 51
Bracket width L3 (mm) 18
Length Y (mm) 58
Diameter D1 (mm) 10.5
Type of thread M8
Position of the legs 30-60
Dist. betw. center C (mm) 173
Regulator YES/NO YES
Cooling fan external cooling
Vacuum pump NO
Plug type 42
QTY. of belts 1
Ø pulley D2 (mm) 66
Width of the tread W (mm) 30

Additional information

Manufacturer / Brand
