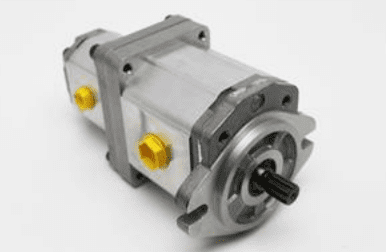

Gear pump Genie 89858

447.85 Excl. VAT

Gear pump Genie 89858

Type of pump gearpump
Number of elements 2
Type of flange B
Center distance of mounting holes C1 (mm) 112.7
Total length of pump L1 (mm) 235
Neck diameter D2 (mm) 82.5
Type of shaft D
Distance from flange to end L2 (mm) 32
Diameter of shaft D3 (mm) 15.2
Number of splines 9
Direction of rotation CLOCKWISE
Position of suction port 1st element, only for pump type T POS-CO1 SIDE
Type of connections suction port1st element, only for pump type T TY-COa TYPE E
Thread type suction side of 1st element TA-Pa 1 5/16 UNF
Position of pressure 1st element, only for pump type T POS-CO2 SIDE
Type of connections pressure 1st element, only for pump type T TY-COb E
Thread type pressure side of 1st element TA-Pb 3/4 UNF
Position of pressure port 2nd element, only for pump type T POS-CO4 SIDE
Type of connections pressure port 2nd element, only for pump type T TY-COd TYPE E
Thread type pressure side of 2nd element TA-Pd 9/16 UNF
Flow control valve present NO
Material of the housing aluminium
Weight 4.6 kg
