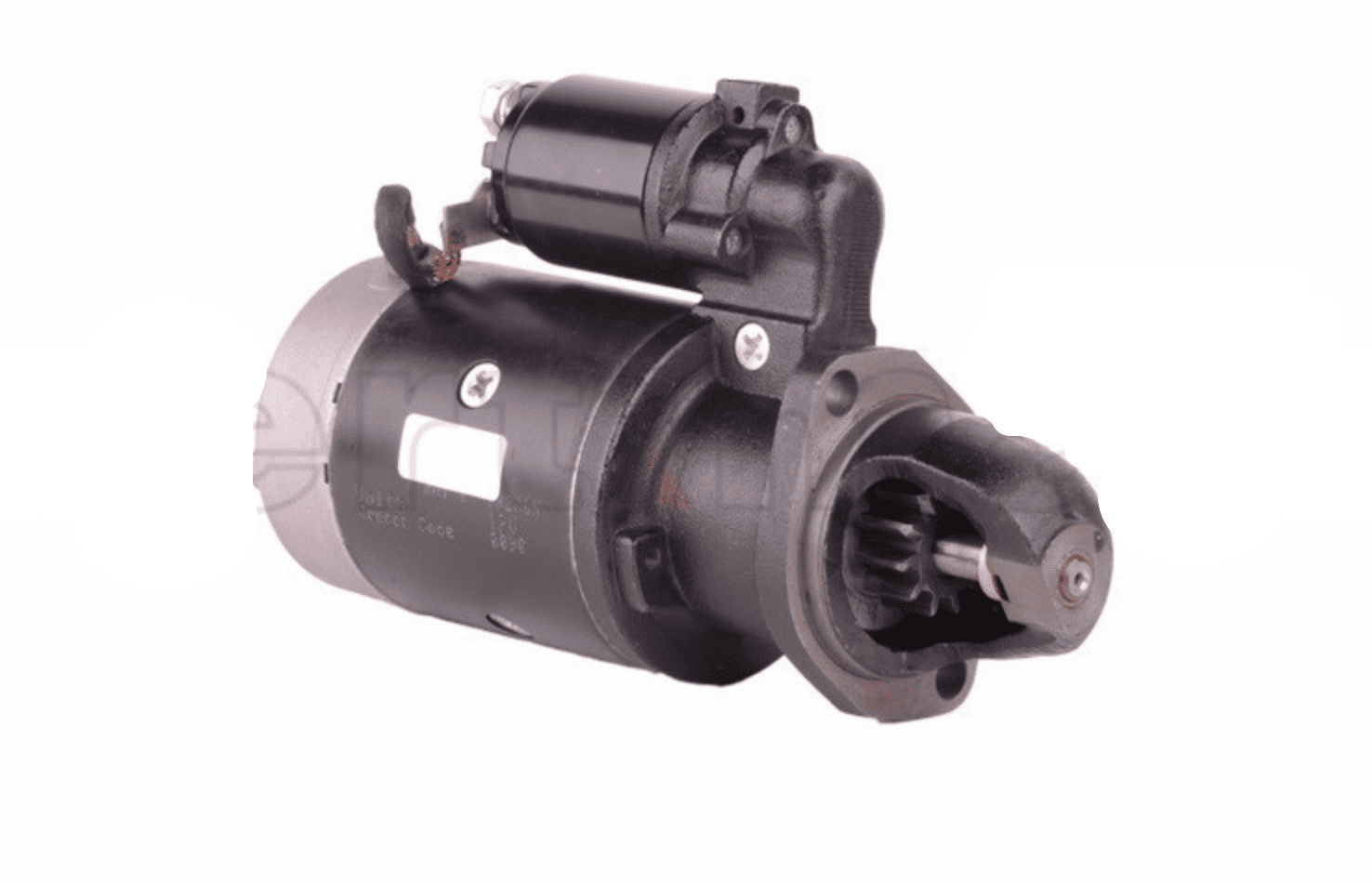

Starter Haulotte 2440405020

Starter Haulotte 2440405020 fits H12SX(L), H15SX(L), H18SX(L)
Starter type Direct drive
Type of head Y
Voltage (V) 12
Power KW (kW) 2.7
Neck diameter D1 (mm) 82
Pinion Ø D2 (mm) 40
Number of teeth 11
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 311.5
Distance between pinion and flange L2 (mm) 21
Distance between pinion and nose L3 (mm) 19
Distance drive cover (mm) 70
Number of holes 2
Position of fixation 50-20-00
Position of centers 105
Ø mounting holes D3 (mm) 13.5
Oil sealed yes/no NO
Length (m) 0.33
Width (m) 0.18
Height (m) 0.12
Weight (kg) 12.50
