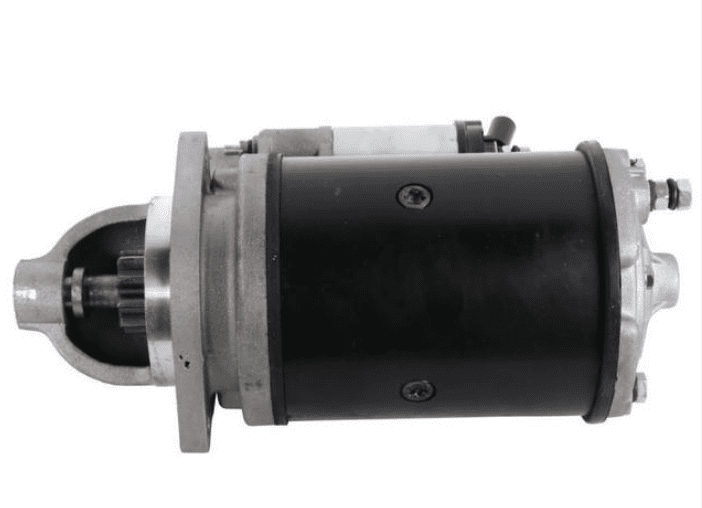

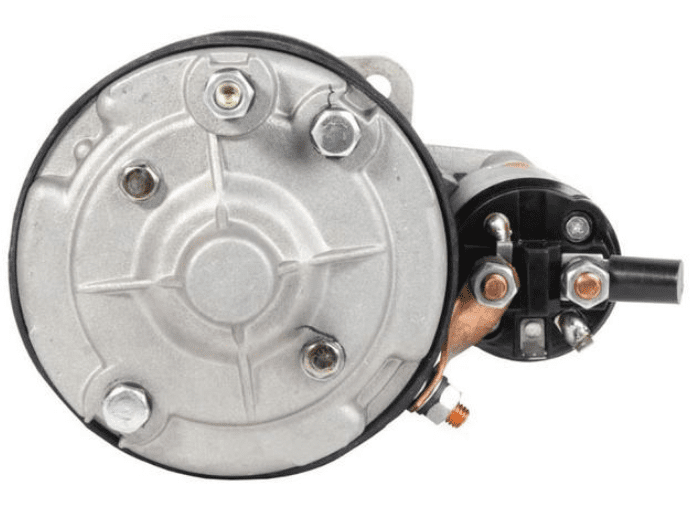

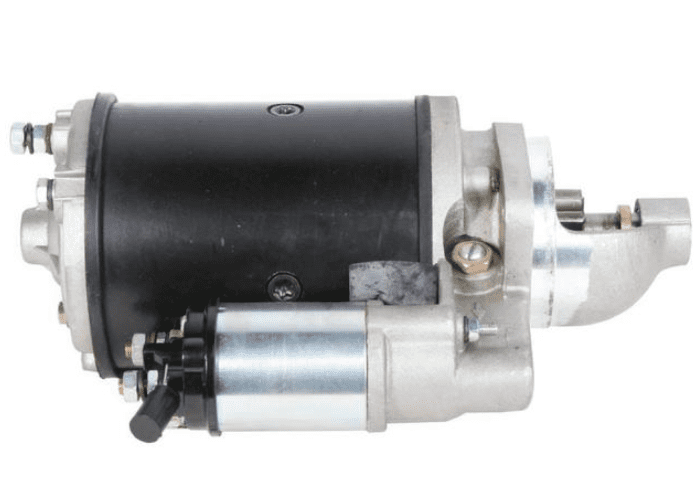

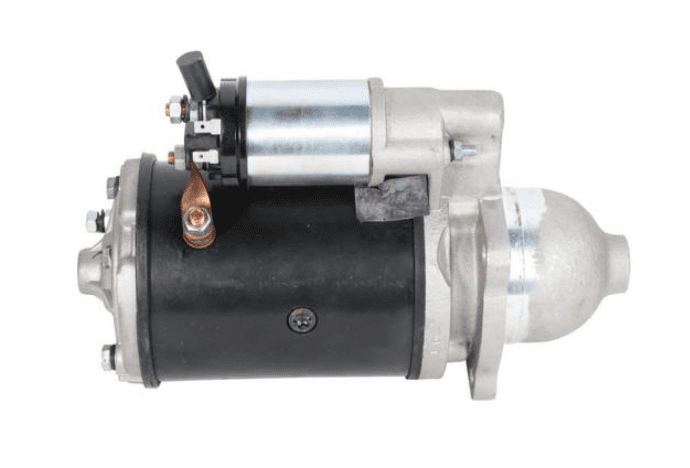

Starter JCB 714/40005

209.49 Excl. VAT

Fits JCB  926, 930, 940,  805, 805B, 805BT, 806, 806B, 806C, 807, 807B, 807C, 808, 811, 812, 814,  5C, 6C, 7B, 7C, 8, 8C, 8D, 214, 215, 217, 2CX, 3C 1400, 3C 1550, 3D 1700, 3CX Sitemaster, 4CN, 1400, 1400B, 1000, 1200, 1250, 1500, 1500B, 1600B, 1700, 1700B, 110, 110B, 110C.

Starter type Direct drive
Type of head T
Voltage (V) 12
Power KW (kW) 2.8
Neck diameter D1 (mm) 88.5
Pinion Ø D2 (mm) 39.5
Number of teeth 10
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 310
Distance between pinion and flange L2 (mm) 29
Distance between pinion and nose L3 (mm) 16
Distance drive cover (mm) 75
Number of holes 3
Position of fixation 40-55-10
Position of centers 90-90-127
Ø mounting holes D3 (mm) 11
Oil sealed yes/no YES
