| Weight | 0,67 kg |
|---|

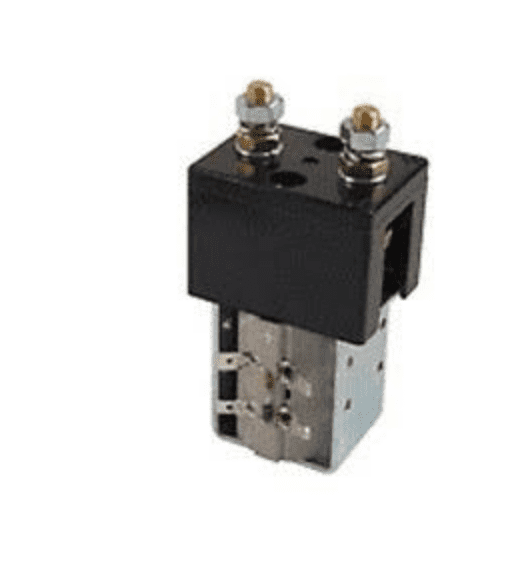

Contactor 24 V JLG SE1003
108,63 € Excl. VAT
Contactor 24V JLG SE1003 fits Toucan 870, 1010, 1210
| Shape of the contactor | square shape 2 |
|---|---|
| Maximum length of the contactor L1 (mm) | 61 |
| Maximum width of the contactor W1 (mm) | 50 |
| Maximum height of the contactor H1 (mm) | 123 |
| Number of solenoids | 1 |
| Voltage of the solenoid (V) | 24 |
| Type of current | direct current |
| Current (A) | 180 |
| Sort of operation | continue operation |
| Pull-in voltage (V) | 16 |
| Drop-out voltage (V) | 6 |
| Resistance of the solenoid (Ohm) | 48.8 |
| Number of connections on the solenoid | 4 |
| Type of connection on the solenoid | blade 6,3mm |
| Number of contact connections | 2 |
| Type of contact connection | outer thread |
| Outer thread size | M8 |
| Pitch metric of outer thread (mm) | 1.25 |
| Right or left handed outer thread | right hand outer thread |
| Fuse present | NO |
| External diode present | NO |
| External resistor present | NO |
| Number of normal open contacts (NO) | 1 |
| Auxiliary contact present | NO |
| Diameter of the tip D3 (mm) | 10.5 |
| Textured tips present | NO |
| Magnetic blow outs present | NO |
| Top cover | open |
| Shortest center distance between mounting holes C1 (mm) | 16 |
| Longest center distance between mounting holes C2 (mm) | 25.4 |
| Number of closed holes | 8 |
| Shape mounting surface | flat |
| Support present | NO |
