| Weight | 3,9 kg |
|---|---|
| Manufacturer / Brand |

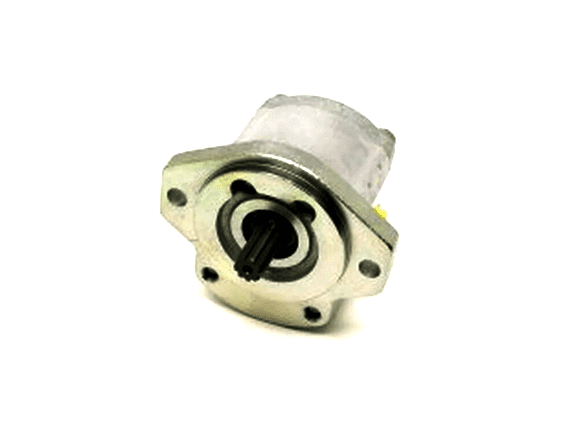

Hydraulic Pump Genie 96193GT
238,95 € Excl. VAT
Fits GENIE Vertical Mast Lift Models GR-08, GR-12, GR-15, GR-20, GRC-12, WS-12R, QS-12W, QS-15R, QS-15W, QS-20R and QS-20W. Fits GENIE Scissor Lift Models GS-1530, GS-1532, GS-1930, GS-1932, GS-2032, GS-2046, GS-2632, GS-2646, GS-2646 AV, GS-2646 AV35, GS-3232 and GS-3246. Fits GENIE Towed Articulating Boom Lift Models TMZ-50/30 and TZ-50/30. Fits Articulating Boom Lift Models Z-33/18, Z-40/23N and Z-40/23N RJ.
| Type of pump | gearpump |
|---|---|
| Number of elements | 1 |
| Type of flange | A |
| Diameter of flange mounting holes D1 (mm) | 11 |
| Center distance of mounting holes C1 (mm) | 106 |
| Total length of pump L1 (mm) | 123 |
| Neck diameter D2 (mm) | 82.4 |
| Type of shaft | D |
| Distance from flange to end L2 (mm) | 30 |
| Diameter of shaft D3 (mm) | 15.3 |
| Number of splines | 9 |
| Direction of rotation | COUNTERCLOCKWISE |
| Position of suction port 1st element, only for pump type T POS-CO1 | SIDE |
| Type of connections suction port1st element, only for pump type T TY-COa | TYPE E |
| Thread type suction side of 1st element TA-Pa | 7/8 UNF |
| Position of pressure 1st element, only for pump type T POS-CO2 | SIDE |
| Type of connections pressure 1st element, only for pump type T TY-COb | E |
| Thread type pressure side of 1st element TA-Pb | 3/4 UNF |
| Flow control valve present | NO |
| Material of the housing | aluminium |
