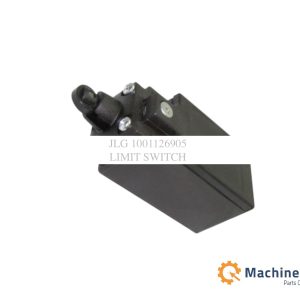

The JLG 1001126905 limit switch is a precision-engineered electromechanical position switch designed for use in aerial work platforms, scissor lifts, and other industrial lifting equipment. This model features a roller plunger actuator positioned at the top, enabling accurate mechanical actuation when contacted by moving components.
- Roller plunger actuator (top position)
- 11 mm plastic roller
- 2 mounting holes (20 mm center distance)
- 6A current rating
- 1NO + 1NC contact configuration
- PG 13.5 cable gland connection
Reliable for motion control, safety interlock, and position sensing systems.
In aerial lift equipment such as electric scissor lifts and boom lifts, limit switches like the JLG 1001126905 play a critical role in:
- Over-travel prevention
- Platform height detection
- Safety interlock control
- Motion limit verification
- Emergency stop logic integration
The PG 13.5 gland connection allows secure cable entry and strain relief, protecting wiring from vibration and environmental exposure.
Always verify fitment using your equipment model and serial number before installation.
