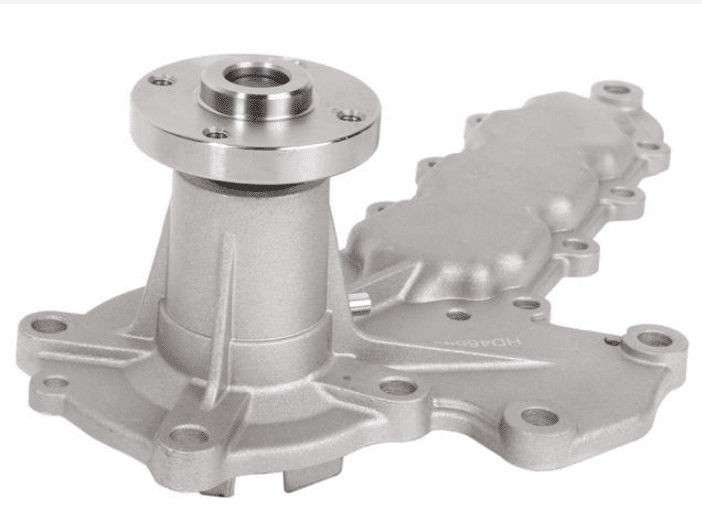

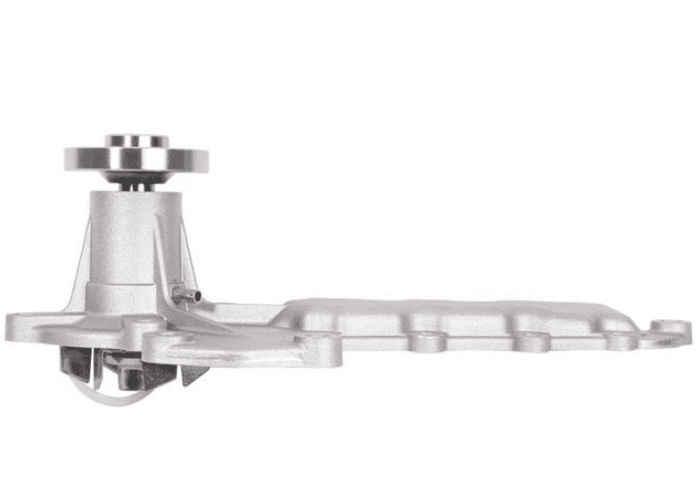

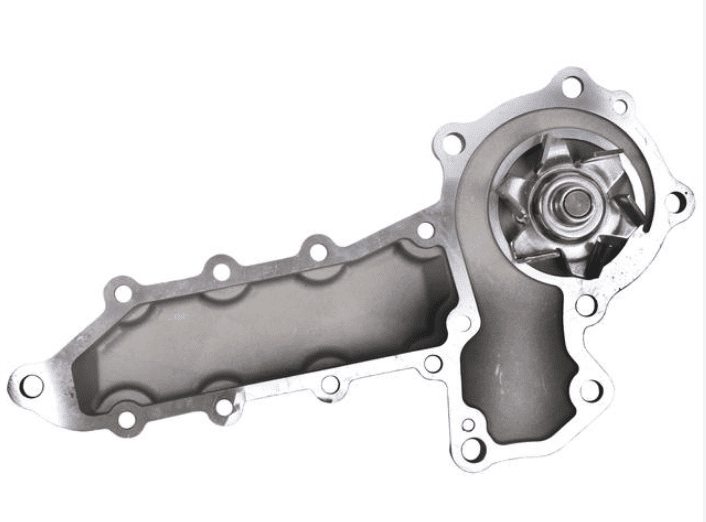

Water pump Bobcat 6684225
282,52 € Excl. VAT
| Sort waterpump | flange |
|---|---|
| Type waterpump | A1 |
| Total height H1 (mm) | 111.4 |
| Maximum length L1 (mm) | 303 |
| Shaft diameter D1 (mm) | 15.8 |
| Neck diameter D2 (mm) | 27.8 |
| Flange/gear or pully diameter D3 (mm) | 62.6 |
| Total number of mounting holes for v-pulley (holes + thread) | 4 |
| Number of threads | 4 |
| Biggest thread TA1 | M6 |
| Metric pitch Pm1 (mm) | 1 |
| Smallest centre distance of nearest mounting holes C1 (mm) | 35 |
| Biggest centre distance of nearest mounting holes C2 (mm) | 35 |
| Thread of mounting cooling fan present | NO |
| Gasket included | YES |
