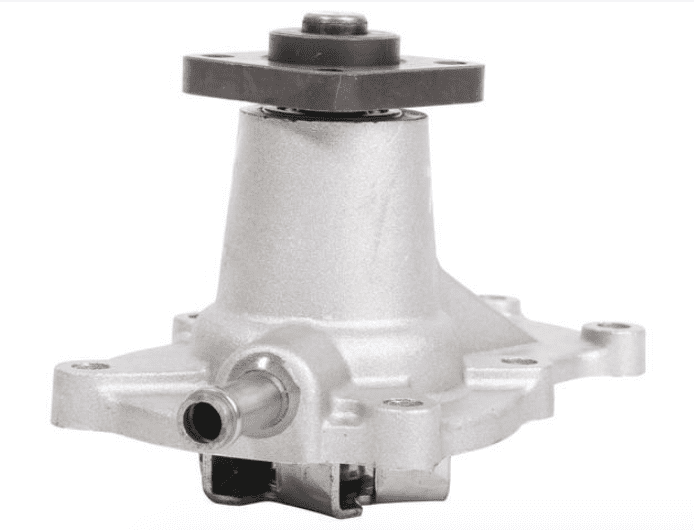

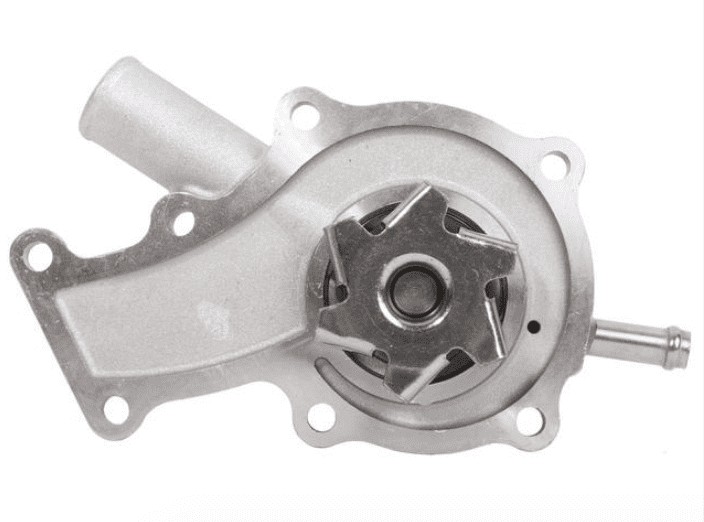

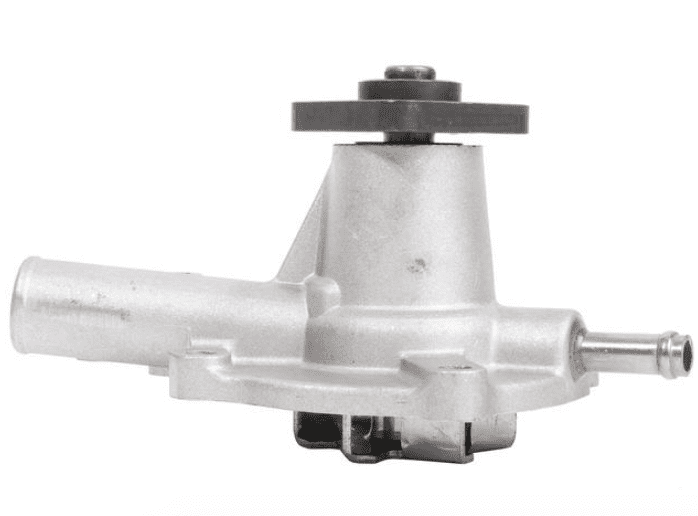

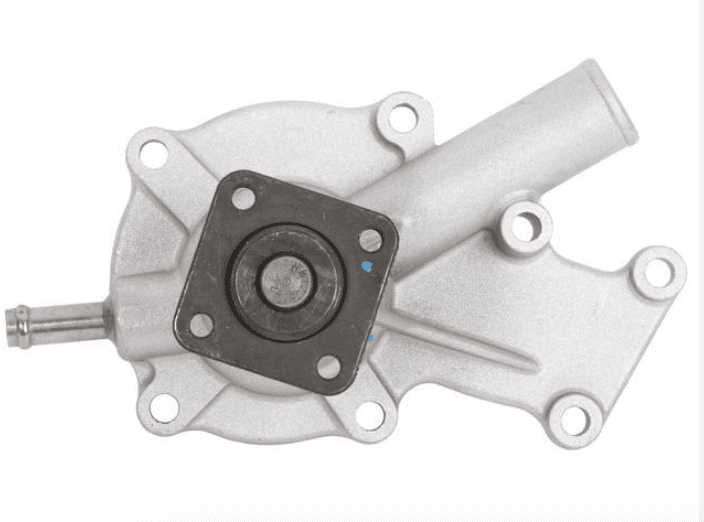

Water pump Bobcat 7286726
266,63 € Excl. VAT
Water pump Bobcat 7286726
| Sort waterpump | flange |
|---|---|
| Type waterpump | A3 |
| Total height H1 (mm) | 88 |
| Maximum length L1 (mm) | 159 |
| Shaft diameter D1 (mm) | 12 |
| Neck diameter D2 (mm) | 23.9 |
| Length of flange,if not round Z1 (mm) | 42.75 |
| Total number of mounting holes for v-pulley (holes + thread) | 4 |
| Number of threads | 4 |
| Biggest thread TA1 | M6 |
| Metric pitch Pm1 (mm) | 1 |
| Smallest centre distance of nearest mounting holes C1 (mm) | 30 |
| Biggest centre distance of nearest mounting holes C2 (mm) | 30 |
| Thread of mounting cooling fan present | NO |
| Gasket included | NO |
