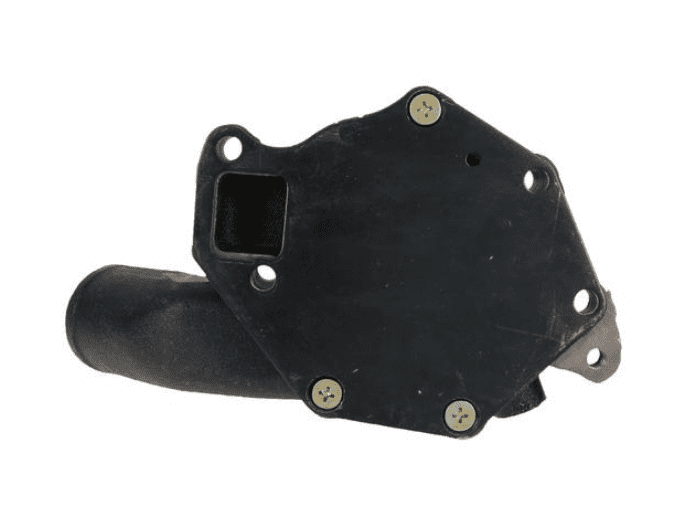

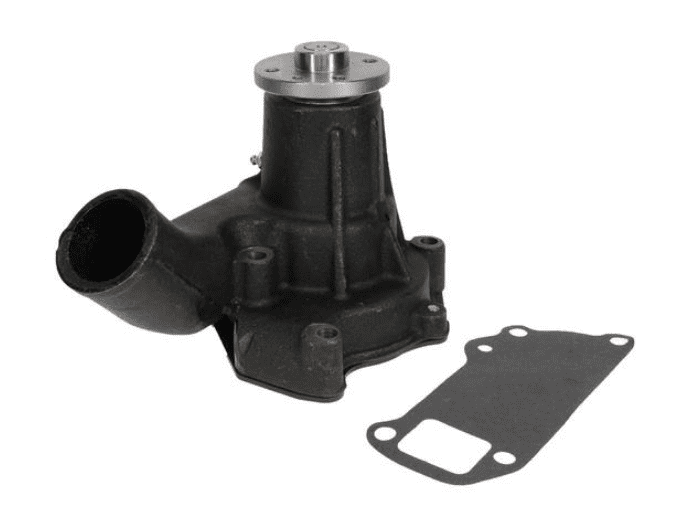

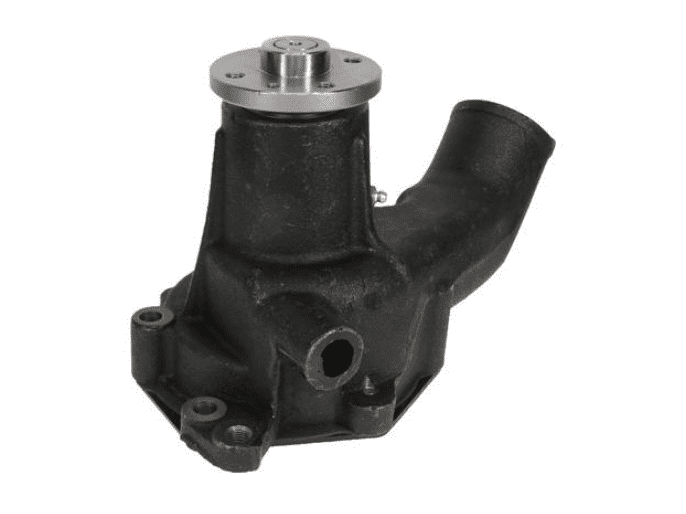

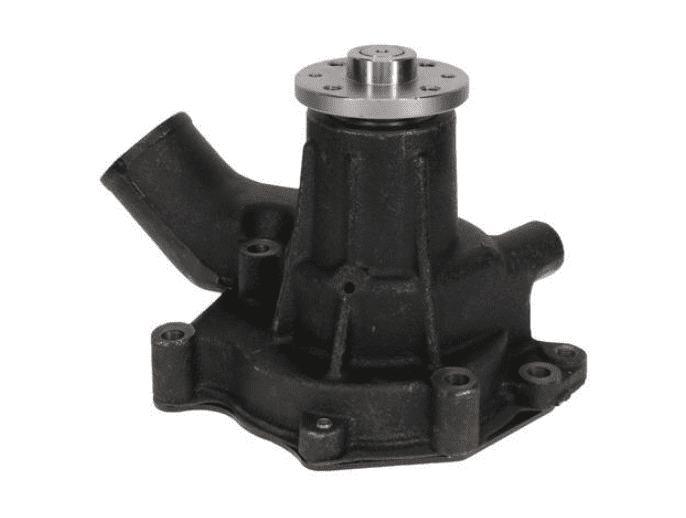

Water pump JCB 02/800990
231,39 € Excl. VAT
Water pump JCB 02/800990 for Perkins 6.354 engines. Fits JS175W-T2, JS200W-T2, JS190, SJ210, JS210 HD, JS220. JS220 HD, JS235 HD, JS240 LC, JS240 AUTO, JS260 XD, JS260 AUTO.
| Sort waterpump | flange |
|---|---|
| Type waterpump | A1 |
| Total height H1 (mm) | 167 |
| Maximum length L1 (mm) | 274 |
| Shaft diameter D1 (mm) | 20 |
| Neck diameter D2 (mm) | 32 |
| Flange/gear or pully diameter D3 (mm) | 77 |
| Total number of mounting holes for v-pulley (holes + thread) | 6 |
| Number of threads | 6 |
| Biggest thread TA1 | M8 |
| Metric pitch Pm1 (mm) | 1.25 |
| Smallest thread TA2 | M6 |
| Metric pitch Pm2 (mm) | 1 |
| Smallest centre distance of nearest mounting holes C1 (mm) | 23 |
| Biggest centre distance of nearest mounting holes C2 (mm) | 43 |
| Thread of mounting cooling fan present | NO |
| Gasket included | YES |
Out of stock
